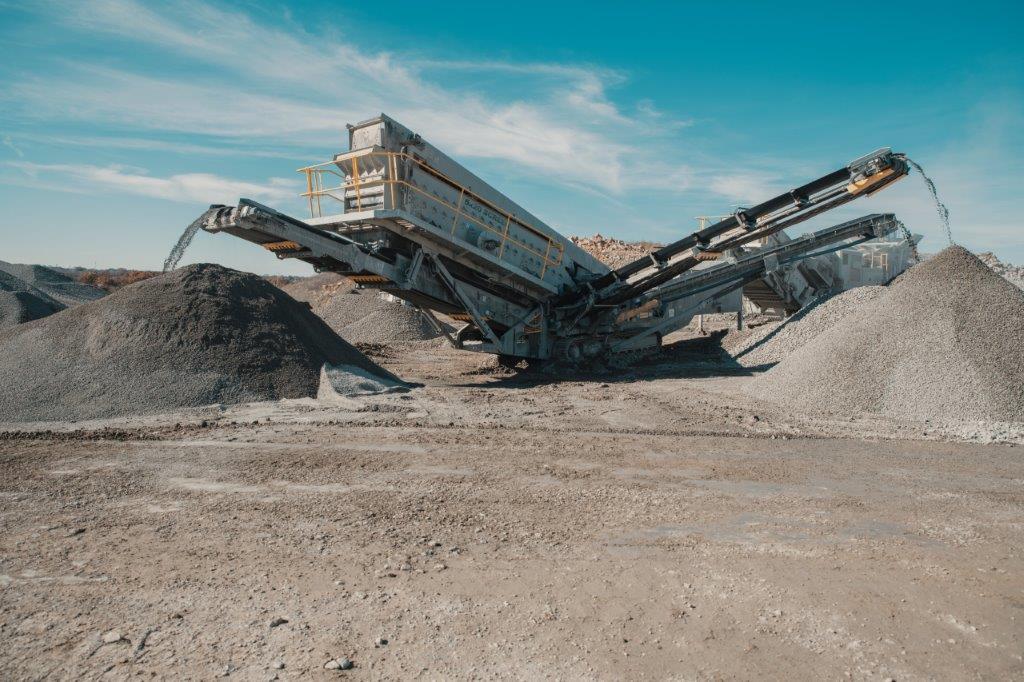

Available in 2-deck and 3-deck configurations, the innovative design ensures consistent and maximum coverage of material across the screens, whilst delivering the highest efficiency for material separation across the category.
Adjustable screenbox angles allow adaptability for a wide range of material applications including aggregates, mining, sand, gravel and coal.
Features
- 20' x 5' heavy duty high energy 2 bearing 3-deck screenbox
- CAT C4.4 130Hp engine
- Integrated hydraulic folding stockpiling conveyors
- 3-deck auxiliary conveyor attaches to machine for one unit transport
- Remote control tipping grid
- Fast on-site setup time – 15 minutes
Screenbox focus
| Dimensions Top Deck | 6100mm x 1524mm |
| Dimensions Middle Deck | 6100mm x 1524mm |
| Dimensions Bottom Deck | 5490mm x 1524mm |
| Screens Top Deck | 5' x 4' side tension - 5 off |
| Screens Middle Deck | 5' x 4' side tension - 5 off |
| Screens Bottom Deck | 5' x 6' side tension - 3 off |
| Screen Angle | 20 - 30 deg |
| Speed Adjustable | YES – Pressure compensated FCV |
| Screen Stroke Adjustable | 10mm |
