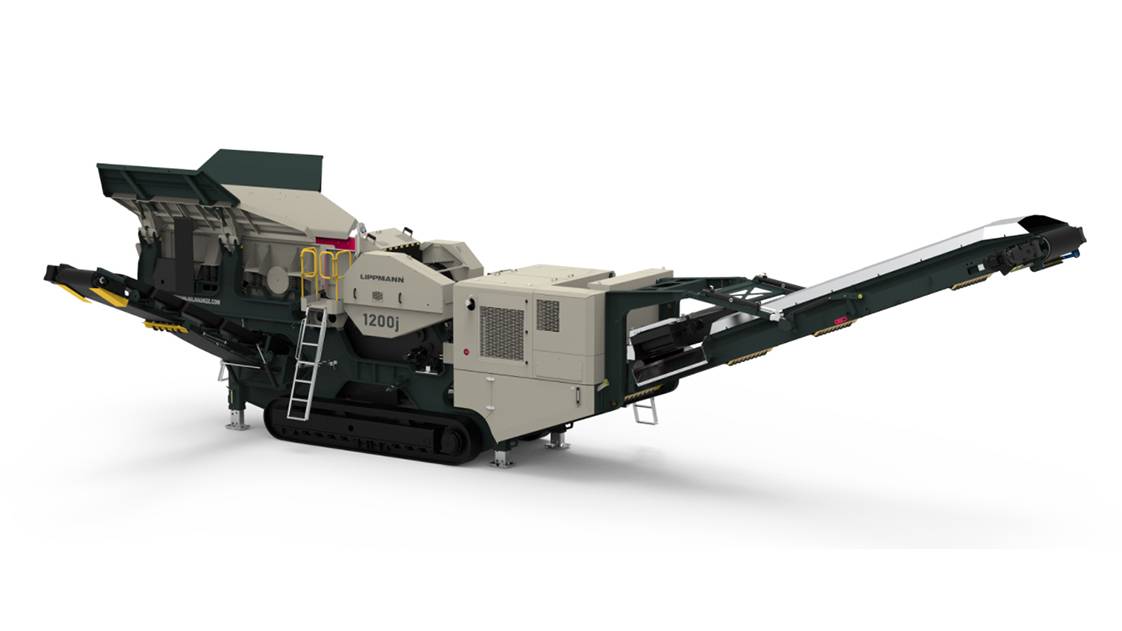

Get a true edge on the job site with the 1200j electric heavy duty track-mounted jaw crusher, which strikes the perfect balance of reducing electric power operation costs while increasing reliability.
With a 75" (1905mm) deep jaw chamber, this go-to crusher tackles the toughest applications in mining, aggregate, and recycling.
Rely on the 1200j for smooth operation and maximum throughput as Lippmann engineers have optimized the material flow and jaw chamber design for high productivity.
Features
- Optimized material flow with high TPH
- Large gap between crusher discharge and main conveyor belt
- Wide main and side conveyors
- 48" x 34" jaw opening
- Single toggle jaw accommodates large feed sizes
- Closed side setting adjustment with hydraulic wedges
- Electric power
- Line power connection standard
- Connect to line power or onboard generator
- Simplified troubleshooting
- High performance standard features
- 12" DSE control panel
- High volume fuel tank
- Heavy duty bolt-on tracks
Options
- Quarry jaw die (square profile)
- Super teeth jaw die (wave profile)
- Deflector plate under jaw
- Rock hammer
- 2" aperture Bofor
- Overband magnet with hydraulic raise and lower
- Rubber base liners in pan
feeder - Rubber hopper side liners
- Hopper extensions
- Refueling pump
- Work lights
- Water pump and dust suppression system
Crusher chamber
Feed opening WXD - 1200 x 964mm
Crusher speed - 3.83 Hz
Crusher stroke - 37mm
Crusher drive - Hydraulic V-belts
Minimum opening - 70mm
Maximum opening - 212mm
Maximum feed size - 700mm
Crusher weight bare - 28,000kg
CSS adjustment - Hydraulic wedges
Motor - 160kW
Starter (includes unblock software) - WEG VSD
